Agriculture

Fixed Boom Telehandlers

Agri Plus 40.7

Max Capacity:

4,000 kg

Max Lift Height:

7.0 m

Total Weight:

7,600 kg

Max Power:

93 kW (125 hp)

Engine Brand:

FPT

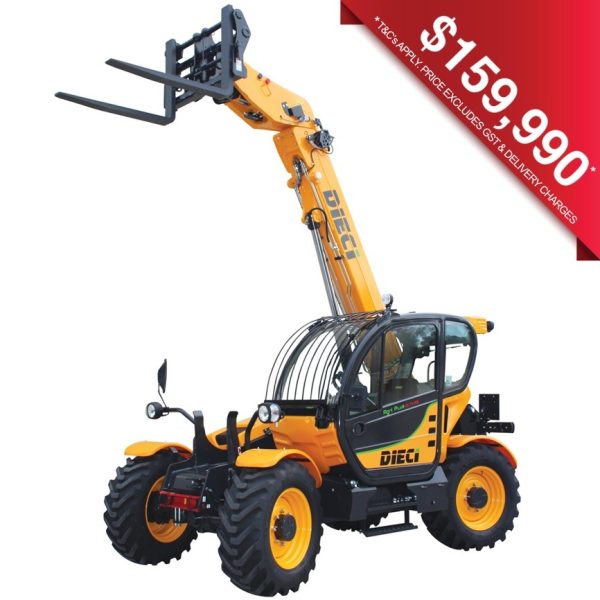

      Dieci Agri Plus Telehandler
      ABOUT

      Product Info

      The Agri Plus 40.7 is designed for heavy and intensive use. It can be equipped with 2 types of transmission including the PS Power Shift transmission, with 6-speed manual/ automatic gearbox and “inching” pedal control which guarantee maximum power at all operating speeds.

      This model is equipped with a Zero Shock System, which effectively reduces oscillations and ensures a high degree of driving comfort.

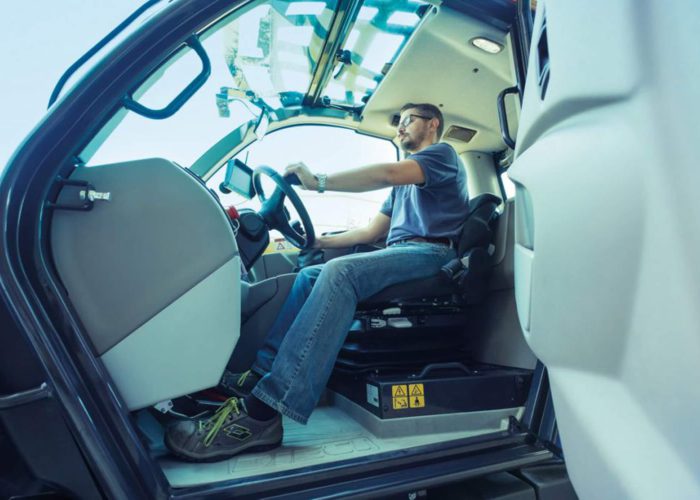

      The 40.7’s ROPS and FOPS approved cab provides a high level of comfort with extra legroom and the possibility of adjusting the armrest and steering column. This model is also approved for towing on road trailers up to 20 tonnes at a maximum speed of 40km/h.

      TECHNICAL

      Specifications

      Length: 5,075 mm

      Width: 2,260 mm

      Height: 2,445 mm

      Maximum capacity: 4,000 kg

      Maximum lifting height: 7.0 m

      Pull-out force: 6,000 daN

      Towing force: 8,200 daN

      Maximum speed: 40 km/h

      Unladen weight: 7,700 kg

      Brand: FPT

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 4,485 cm³

      Nominal power: 93 kW (125 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 190 L/min

      Maximum operating pressure: 25 MPa

      Transmission type: Hydrostatic single speed Vario System EVO2 with electronic control

      Standard tyres: 400/70×24″
