Construction

Fixed Boom Telehandlers

Apollo 25.6

Max Capacity:

2,500 kg

Max Lift Height:

5.78 m

Total Weight:

5,100 kg

Max Power:

55.4 kW (74 hp)

Engine Brand:

Kubota

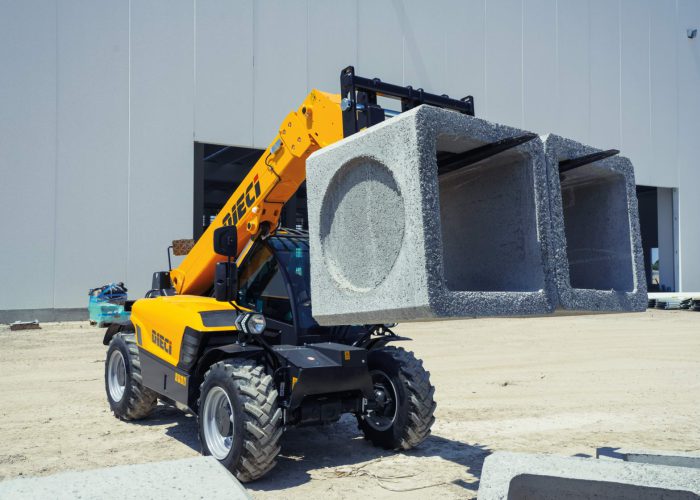

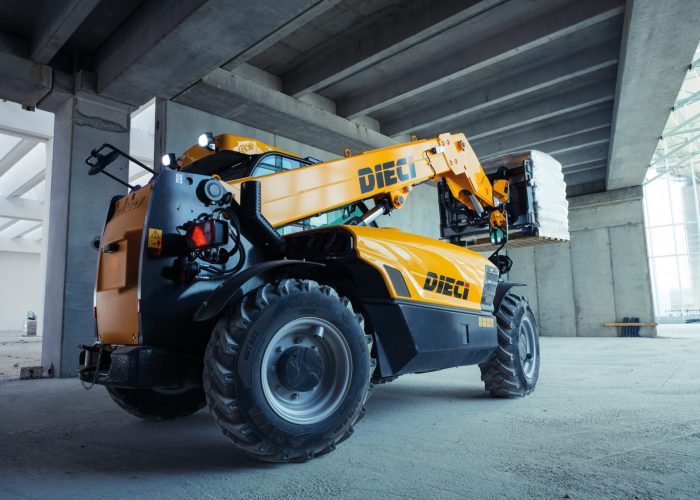

      Dieci Apollo Telehandler
      ABOUT

      Product Info

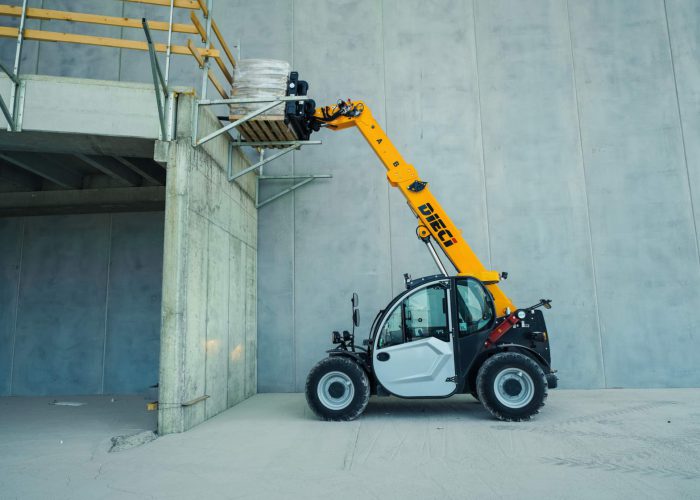

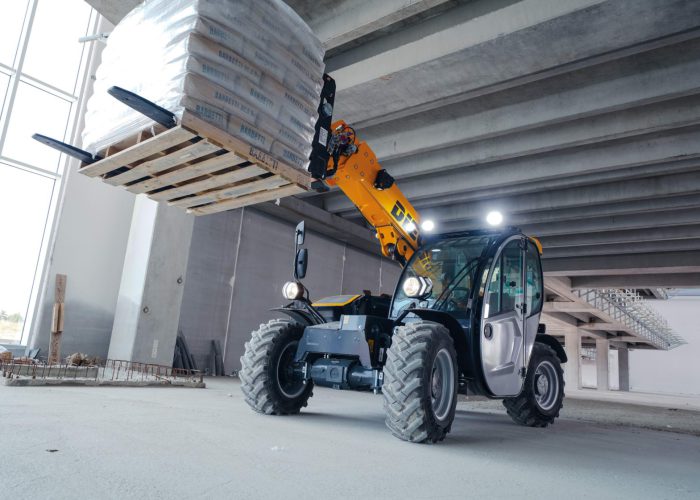

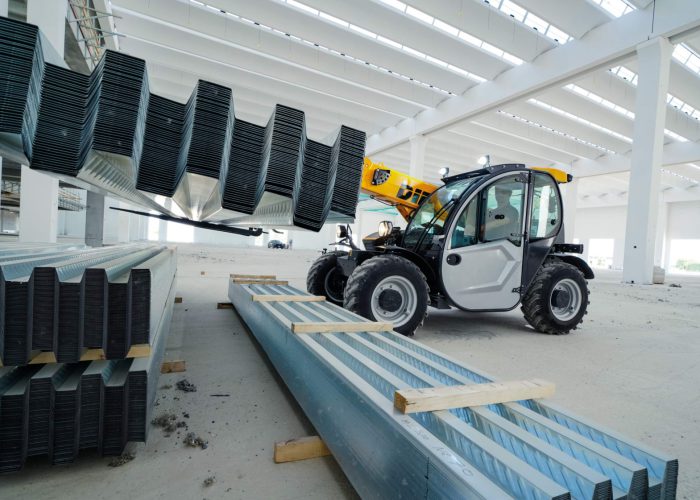

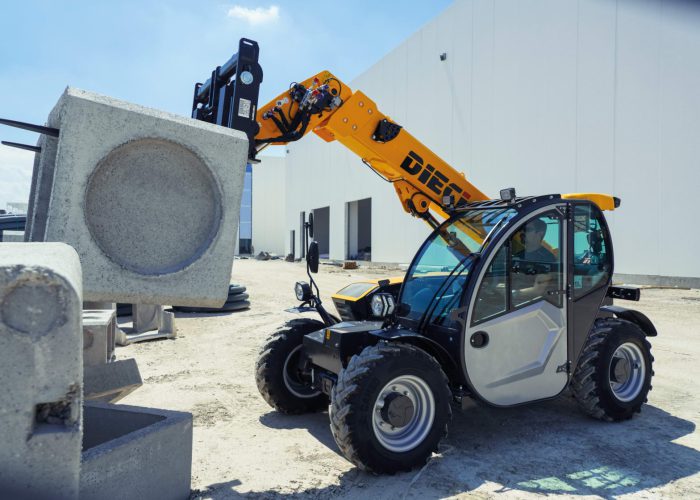

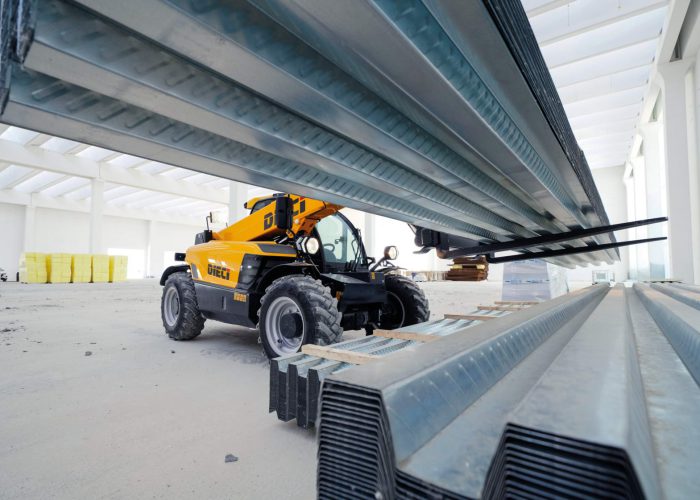

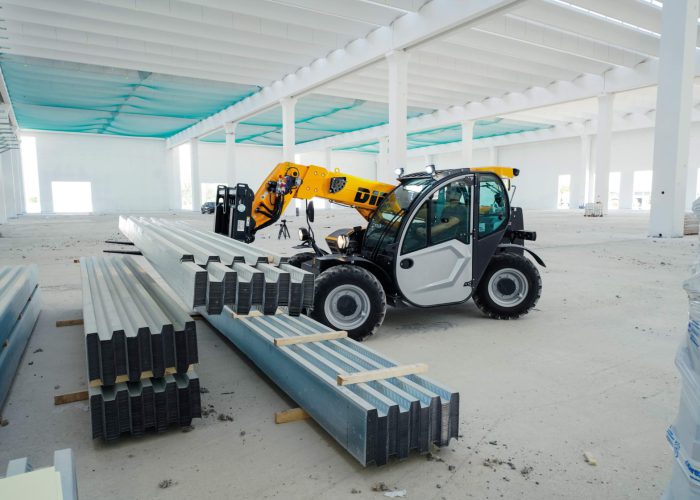

      The Apollo 25.6 is designed to meet the needs of “small works” due to its compact size allowing it to fit into tight and difficult spaces. The high strength of the boom makes it possible to handle loads at great heights.

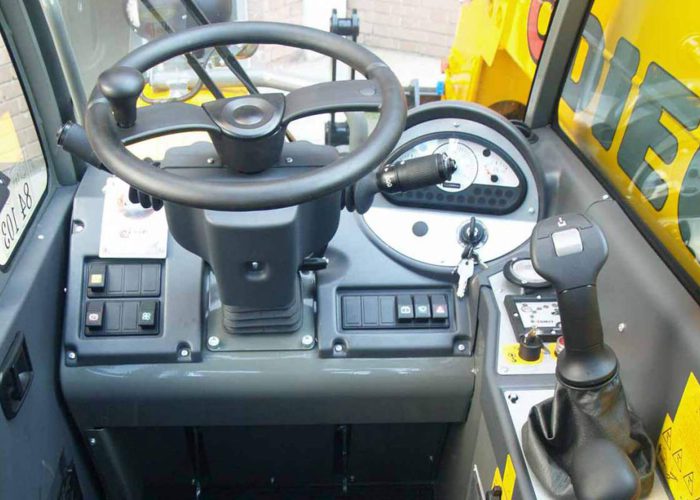

      Great power, excellent handling, precision movement control, sound proofing for absolute comfort, 2WS / 4WS / crab steering modes, as well as the intelligently designed control layout, makes the Apollo 25.6 telehandler simple, intuitive and comfortable to use.

      Known for its exceptional adaptability and superior handling, the Apollo 25.6 telehandler can be equipped with a full range of accessories, including lifting hooks, various types of grippers, excavation and inert material buckets, as well as winches and baskets. With ROPS and FOPS approved cab that ensures a high level of operator comfort with the new DSCS (Double Skin Composite System) door, it is easy to see why the Apollo is one of Dieci’s most popular models.

      TECHNICAL

      Specifications

      Length: 4,125 mm

      Width: 1,850 mm

      Height: 1,950 mm

      Maximum capacity: 2,500 kg

      Maximum lifting height: 5.78 m

      Pull-out force: 7,600 daN

      Towing force: 4,400 daN

      Maximum speed: 30 km/h

      Unladen weight: 5,100 kg

      Brand: Kubota

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 3,331 cm³

      Nominal power: 55.4 kW (74 hp)

      RPM at nominal power: 2,600 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 80 l/min

      Maximum operating pressure: 23 MPa

      Transmission type: Single speed hydrostatic transmission with variable displacement pump

      Standard tyres: 12 x 16.5″
