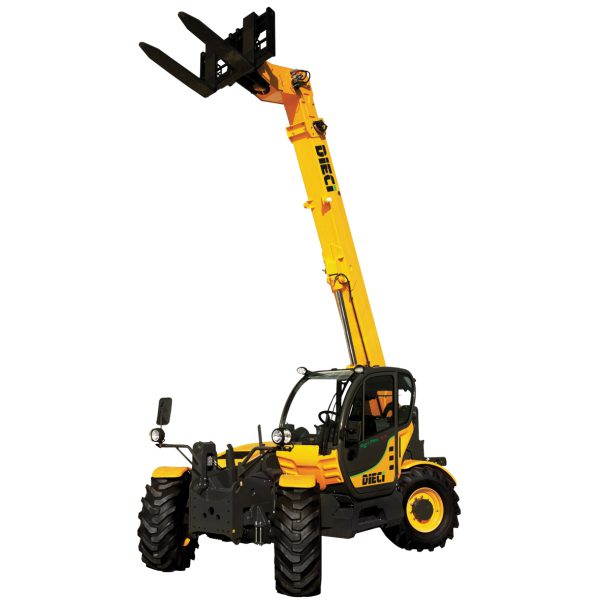

Agri Max 70.10 Heavy Duty Telehandler

Max Capacity:

7,000 kg

Max Lift Height:

9.65 m

Total Weight:

12,100 kg

Max Power:

93 kW (125 hp)

Engine Brand:

FPT

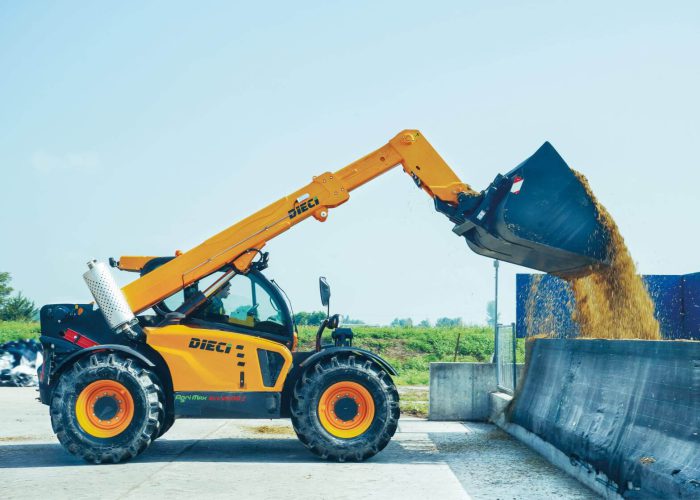

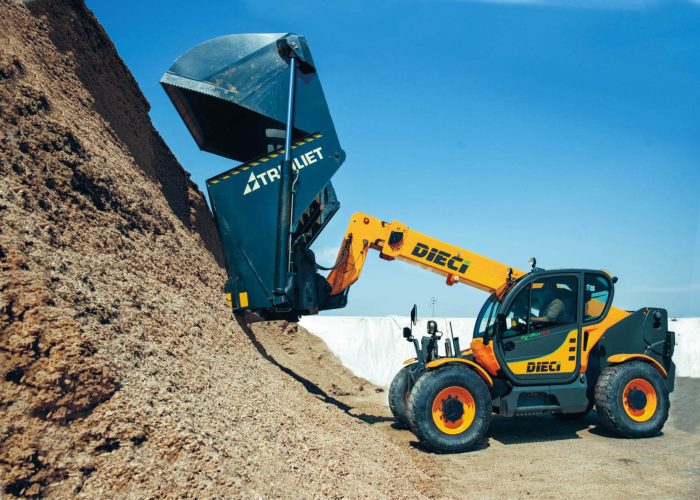

    Dieci Agri max Telehandler

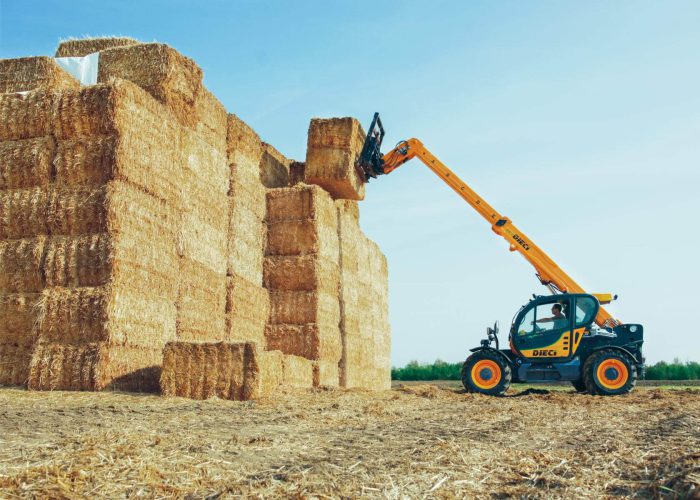

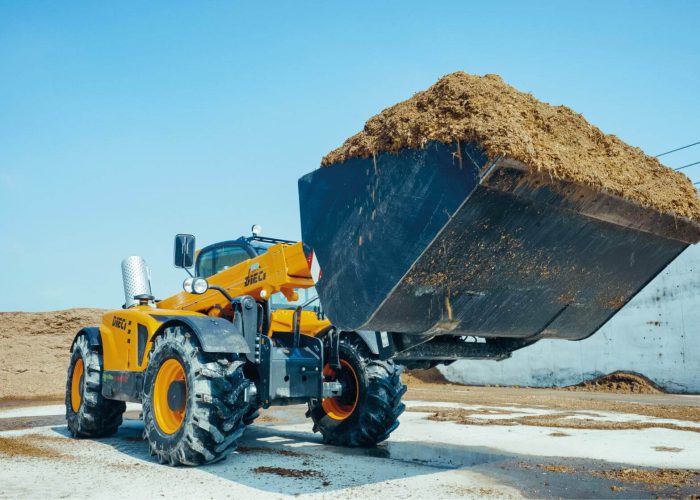

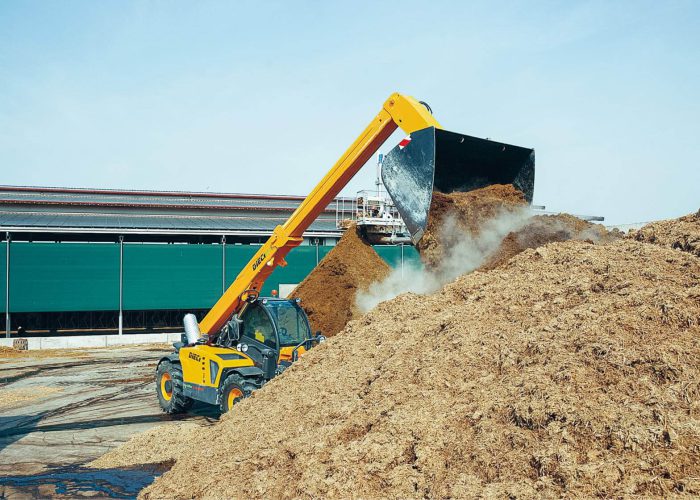

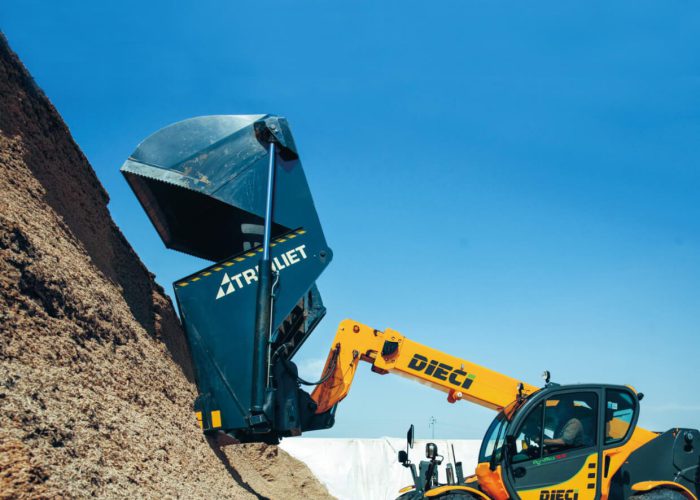

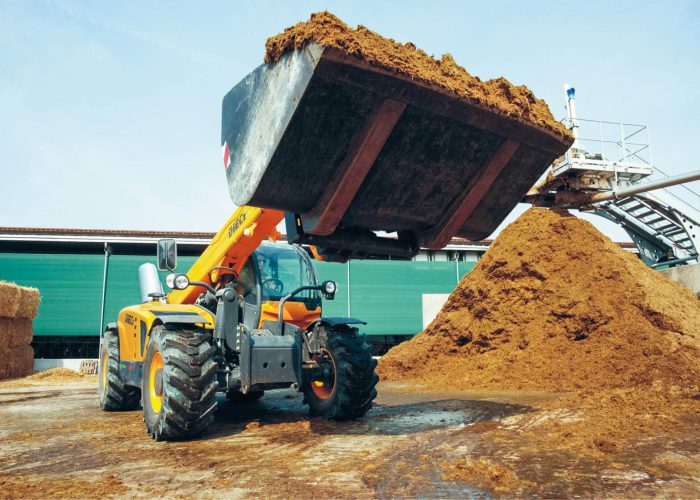

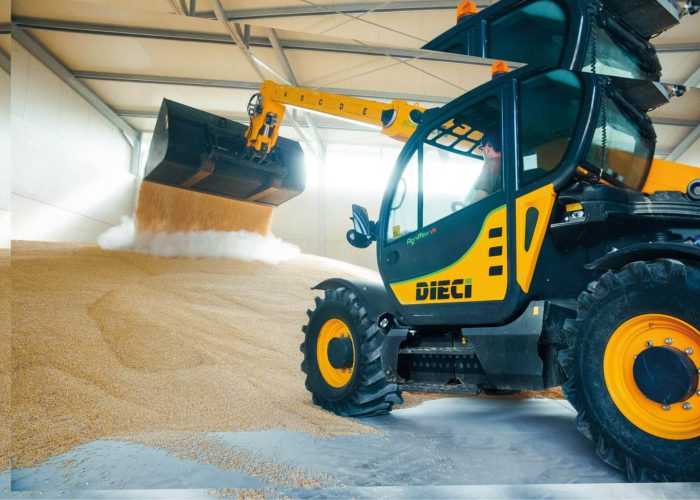

    The Agri Max is an extremely robust and strong telehandler characterised by its extreme power and lifting capacity. Ideal for work environments where there is a need to handle large volumes and reduce work cycles.

    Designed for professional use and heavy-duty applications, where strength and speed are essential features to achieve maximum productivity. Maintenance is straightforward, with durable components and materials designed to last.

    Request a Follow-up From Your Local Dieci Sales Rep







      Specifications

      Length: 6,021 mm

      Width: 2,380 mm

      Height: 2,490 mm

      Maximum capacity: 7,000 kg

      Maximum lifting height: 9.65 m

      Pull-out force: 5,700 daN

      Towing force: 7,300 daN

      Maximum speed: 40 km/h

      Unladen weight: 12,100 kg

      Brand: FPT

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 4,485 cm³

      Nominal power: 93 kW (125 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 130 l/min

      Maximum operating pressure: 26 MPa

      Transmission type: Hydrostatic with variable displacement pump

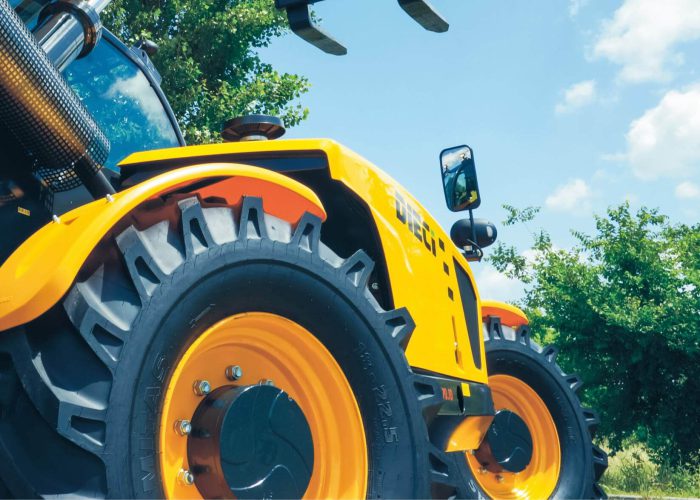

      Standard tyres: 18 x 22.5”
