Agriculture

Specialised Telehandlers

Haymaster 40.7

Max Capacity:

4,000 kg

Max Lift Height:

7.0 m

Total Weight:

7,700 kg

Max Power:

93 kW (125 hp)

Engine Brand:

FPT

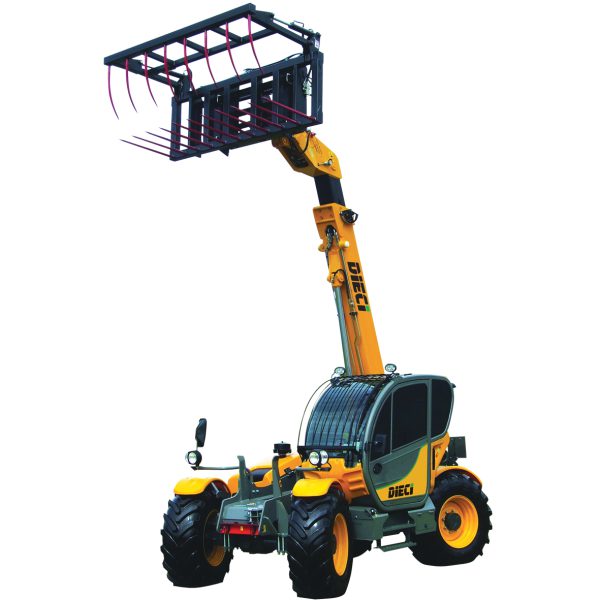

      Dieci Haymaster Telehandler
      ABOUT

      Product Info

      Dieci’s Haymaster 40.7 telehandler makes light work of hay handling thanks to its lifting and reach capabilities. The Haymaster responds to controls in a fluid way, with precision and promptness, thus guaranteeing exceptional work comfort in complete safety. Manoeuvrability and compactness remain the stand out features and the turning radius is one of the narrowest in its category.

      Developed by Dieci, the sophisticated air suspension system installed on the boom (optional), drastically reduces up and down movement when travelling over rough terrain. Equipped with an “Easy Ride” boom system and side-shift carriage, along with 3 steering options including 4WD, 2WD and transversal. In addition, the Haymaster 40.7 can be fitted with a full range of accessories, making it an incredibly versatile machine.

      TECHNICAL

      Specifications

      Length: 5,075 mm

      Width: 2,310 mm

      Height: 2,445 mm

      Maximum capacity: 4,000 kg

      Maximum lifting height: 7.0 m

      Pull-out force: 6,000 daN

      Towing force: 8,200 daN

      Maximum speed: 40 km/h

      Unladen weight: 7,700 kg

      Brand: FPT

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 4,485cm³

      Nominal power: 93 kW (125 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 190 l/min

      Maximum operating pressure: 25 MPa

      Transmission type: Torque converter with Powershift EVO2 reversing mechanism and electric control

      Standard tyres: 460 / 70 x 24″
