Construction

Fixed Boom Telehandlers

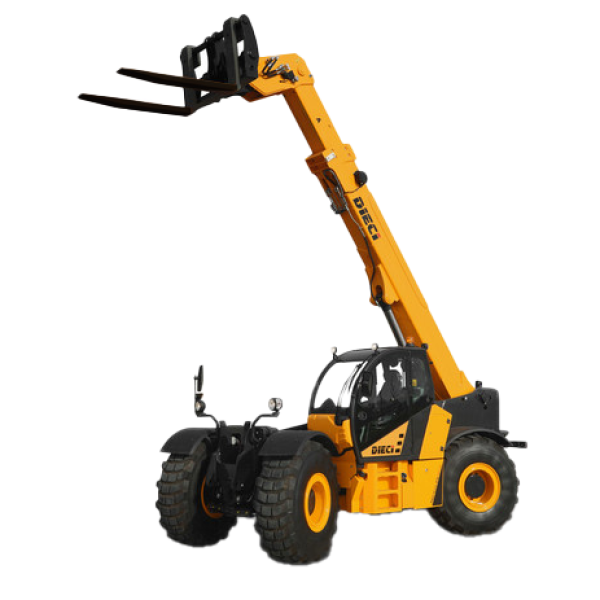

Hercules 190.10

Max Capacity:

19,000 kg

Max Lift Height:

10.2 m

Total Weight:

24,500 kg

Max Power:

129 kW (173 hp)

Engine Brand:

FPT
















      Hercules 190.10 1
      ABOUT

      Product Info

      To cut down on operating expenses at construction sites, it’s imperative to enhance the productivity of construction vehicles. Dieci addresses this demand by introducing the Hercules range of telehandlers that elevate the construction range: they are more versatile, high-performing, durable, reliable, user-friendly, and consistently prioritising safety.

      The Hercules 190.10 has a maximum payload capability of up to 19 tonnes and a reach of 10.2 meters, this telescopic handler stands out for its strength, stability, and durability, making it a well-regarded option for demanding construction site tasks.









      TECHNICAL

      Specifications

      Length: 6,800 mm

      Width: 2,600 mm

      Height: 2,930 mm

      Maximum capacity: 19,000 kg

      Maximum lifting height: 10.2 m

      Pull-out force: 16,200 daN

      Towing force: 19,500 daN

      Maximum speed: 23 km/h

      Unladen weight: 24,500 kg

      Brand: FPT

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 6,728 cm³

      Nominal power: 129 kW (173 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 170 l/min

      Maximum operating pressure: 35 MPa

      Transmission type: Hydrostatic with variable displacement pump

      Standard tyres: 20.5 x 25”
