Agriculture

Fixed Boom Telehandlers

Mini Agri 25.6

Max Capacity:

2,500 kg

Max Lift Height:

5.78 m

Total Weight:

5,100 kg

Max Power:

55.4 kW (74 hp)

Engine Brand:

Kubota

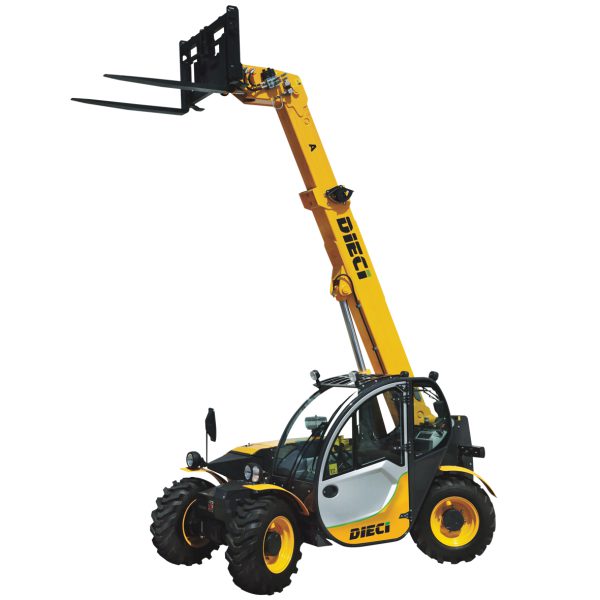

      Dieci Mini Agri Telehandler
      ABOUT

      Product Info

      The Mini Agri is designed to meet the needs of “small works” due to its compact size allowing it to fit into tight and difficult spaces. The durability of the boom enables the handling of heavy loads at considerable elevations.

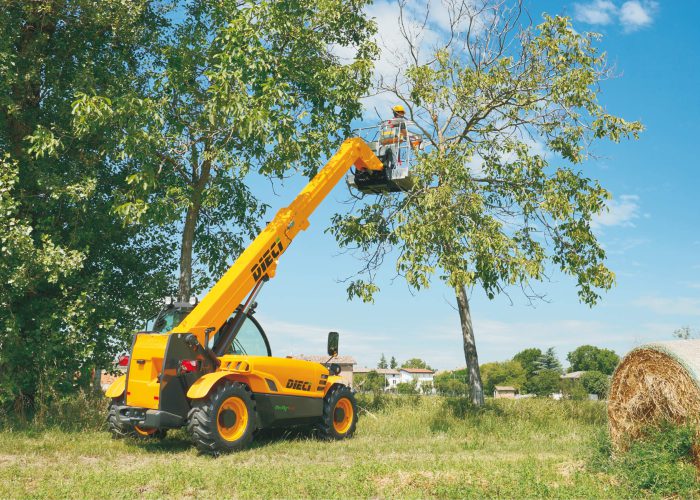

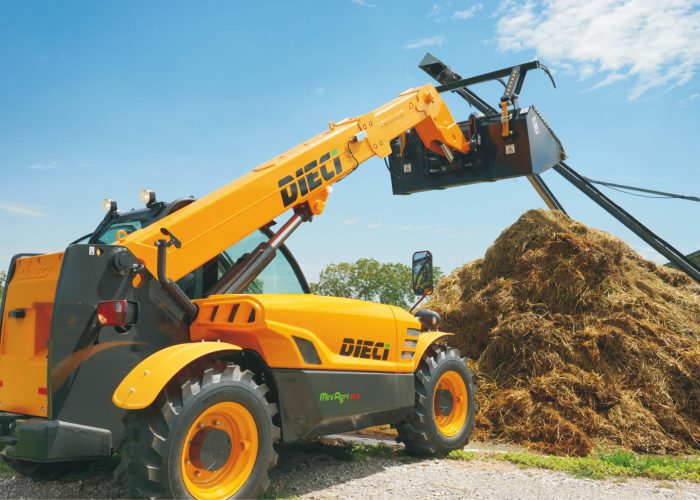

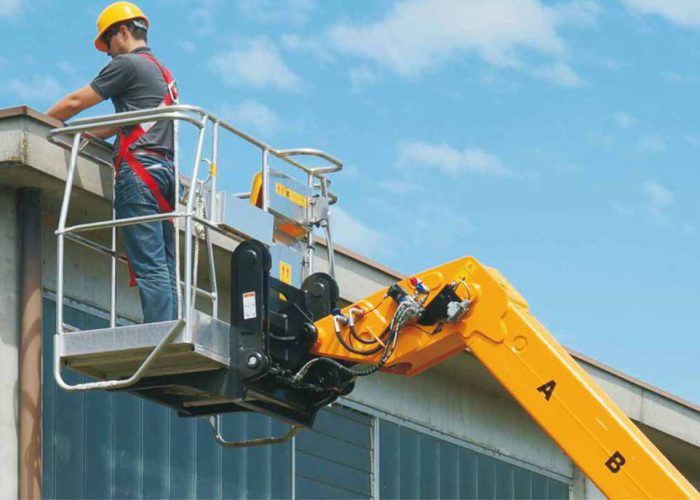

      Characterised by high versatility and excellent handling, this machine can be fitted with a full range of accessories (lifting hooks, grippers of various kinds, buckets for excavation and inert material), also winches and baskets. Equipped with a ROPS and FOPS approved cab that is the most spacious for a telehandler in its category. Designed to ensure a high level of comfort with the new DSCS (Double Skin Composite System) door.

      TECHNICAL

      Specifications

      Length: 4,125 mm

      Width: 1,850 mm

      Height: 1,950 mm

      Maximum capacity: 2,500 kg

      Maximum lifting height: 5.78 m

      Pull-out force: 7,600 daN

      Towing force: 4,400 daN

      Maximum speed: 30 km/h

      Unladen weight: 5,100 kg

      Brand: Kubota

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 3,331 cm³

      Nominal power: 55.4 kW (74 hp)

      RPM at nominal power: 2,600 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 80 l/min

      Maximum operating pressure: 23 MPa

      Transmission type: Single speed hydrostatic transmission with variable displacement pump

      Standard tyres: 12 x 16.5″
