Mining

Rotational Telehandlers

Pegasus – 360° 50.21

Max Capacity:

5,000 kg

Max Lift Height:

20.5 m

Total Weight:

17,540 kg

Max Power:

104 kW (139 hp)

Engine Brand:

FPT
















      Dieci Pegasus Telehandler
      ABOUT

      Product Info

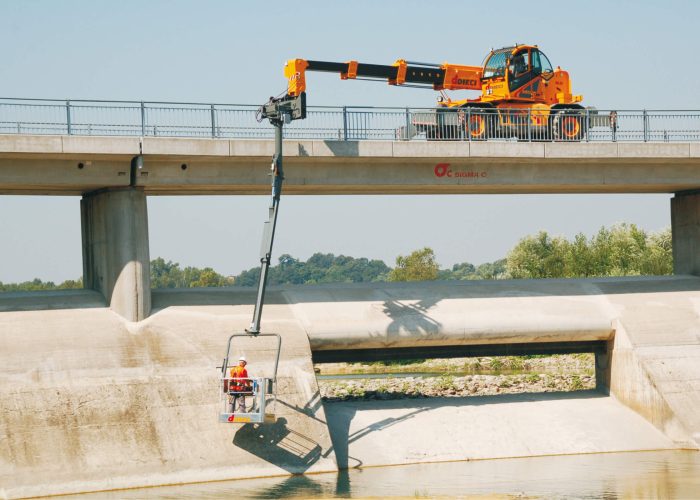

      The Pegasus 50.21 offers unparalleled adaptability with 360° continuous rotations, seamlessly transitioning between telehandler, aerial platform, and crane functions. Its user-friendly operation, robust construction, and comprehensive safety measures, such as a load limiter, ensure precise control in every mining, tunnelling, and quarrying scenario.

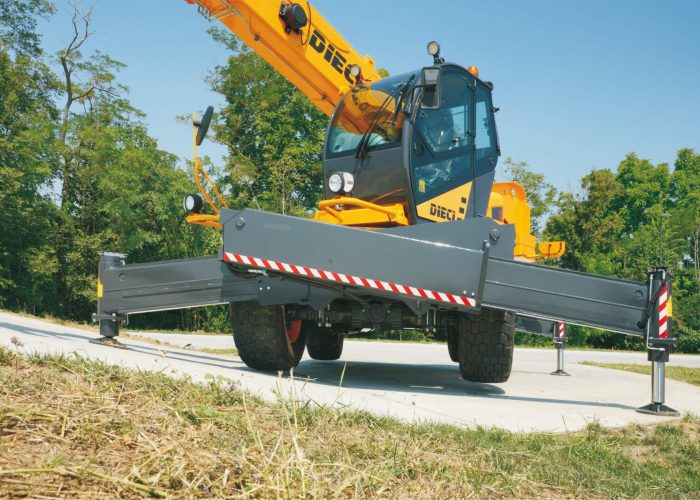

      Equipped with automatic levelling outriggers and CANBUS technology, it ensures seamless operation in any position. With expanded loading and reach capabilities, this model provides unmatched efficiency and flexibility, enabling users to tackle a wide range of tasks effortlessly.

      TECHNICAL

      Specifications

      Length: 7,150 mm

      Width: 2,380 mm

      Height: 3,020 mm

      Maximum capacity: 5,000 kg

      Maximum lifting height: 20.5m

      Pull-out force: 5,700 daN

      Towing force: 9,400 daN

      Maximum speed: 40 km/h

      Unladen weight: 17,540 kg

      Brand: FPT

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 4,485 cm³

      Nominal power: 104 kW (139 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 135 l/min

      Maximum operating pressure: 23 MPa

      Transmission type: Hydrostatic with variable displacement pump

      Standard tyres: 18 x 22.5”
