Mining

Rotational Telehandlers

Pegasus – 400° 40.18

Max Capacity:

4,000 kg

Max Lift Height:

18 m

Total Weight:

13,700 kg

Max Power:

73.4 kW (98 hp)

Engine Brand:

Kubota

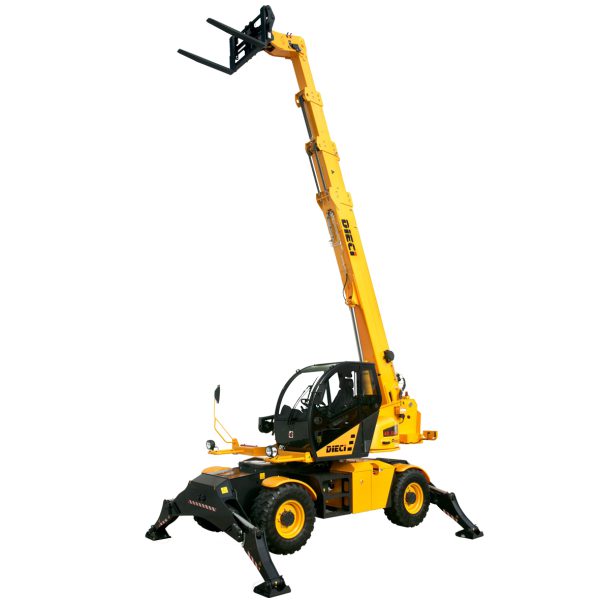

      Dieci Pegasus Telehandler
      ABOUT

      Product Info

      The Pegasus 40.18 stands out as a rotational telehandler with 400° non-continuous rotations. Its exceptional flexibility allows for seamless transitions between telehandler, aerial platform, and crane functionalities, making it a multifaceted asset on mining sites.

      This telehandler is distinguished by its user-friendly design, robust build quality, and comprehensive safety features, including a load limiter and advanced equipment for precise control in diverse operating conditions, terrains, and speeds.

      The spacious and ergonomic cab of the Pegasus 40.18 is equipped with a colour TFT display featuring an intuitive graphical interface, allowing operators to monitor and manage all vehicle functions effortlessly, ensuring optimal performance and safety in every mining effort.

      TECHNICAL

      Specifications

      Length: 6,630 mm

      Width: 2,380 mm

      Height: 3,035 mm

      Maximum capacity: 4,000 kg

      Maximum lifting height: 18 m

      Pull-out force: 5,700 daN

      Towing force: 7,300 daN

      Maximum speed: 25 km/h

      Unladen weight: 13,700 kg

      Brand: Kubtoa

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 3,769 cm³

      Nominal power: 73.4 kW (98 hp)

      RPM at nominal power: 2,600 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 135 l/min

      Maximum operating pressure: 23 MPa

      Transmission type: Hydrostatic with variable displacement pump

      Standard tyres: 400 / 70 x 20”
