Piggery Pro 30.7 TCL

Max Capacity:

3,000 kg

Max Lift Height:

6.35 m

Total Weight:

6,100 kg

Max Power:

73.4 kW (98 hp)

Engine Brand:

Kubota

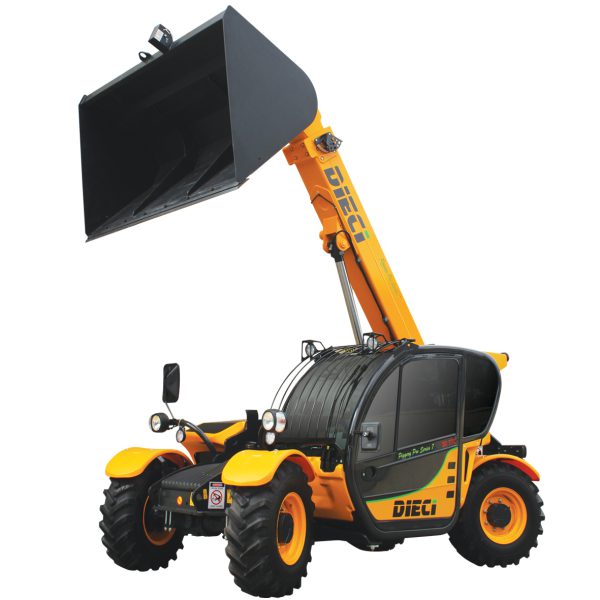

      Dieci Piggery Pro
      ABOUT

      Product Info

      The Piggery Pro is built specifically for the Australian piggery industry. This model has a rollover boom head at the end of the boom, which rotates to 147 degrees allowing for more efficiency when emptying the bucket. Fitted with smaller wheels to help operators navigate more effectively, the compact design of Piggery Pro 30.7 TCL enables easy access into deep litter housing and farming sheds.

      Built tough and reliable with great power, manoeuvrability, excellent handling, and sound proofing for absolute comfort. The Piggery Pro can be fitted with a full range of accessories, making it an incredibly versatile machine.

      In addition, the Piggery Pro is equipped with an engine monitoring system with shutdown protection, reverse radiator fan and improved air flow to keep the engine bay clean. These features make the Piggery Pro 30.7 TCL an ideal model for the industry.

      TECHNICAL

      Specifications

      Length: 4,765 mm

      Width: 2,000 mm

      Height: 2,040 mm

      Maximum capacity: 3,000 kg

      Maximum lifting height: 6.35 m

      Pull-out force: 5,700 daN

      Towing force: 5,500 daN

      Maximum speed: 35 km/h

      Unladen weight: 6,100 kg

      Brand: Kubota

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 3,769 cm³

      Nominal power: 73.4 kW (98 hp)

      RPM at nominal power: 2,600 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 115 l/min

      Maximum operating pressure: 24.5 MPa

      Transmission type: Hydrostatic with variable displacement pump

      Standard tyres: 12.5 x 18″
