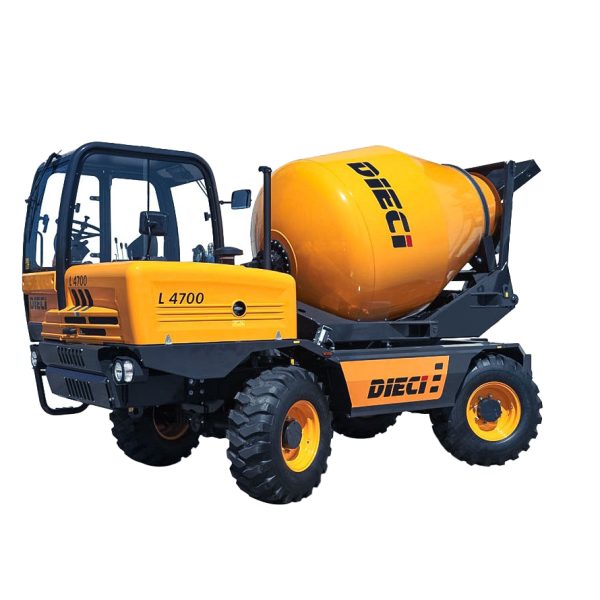

The L 4700 T (without self loading) is a medium-high model of the Dieci Truck Mixers specifically designed for heavy and intensive use.
This model is equipped with a self-locking rear axle, servo- controlled 2 speed gearbox, hydrostatic transmission, 4 driving and steering wheels with braking on all, oil-bath disc brakes, discharge chute adjustable in height and with 180° rotation.
Length: 5,520 mm
Width: 2,400 mm
Height: 3,140 mm
Concrete yield: 3.5 m3
Maximum speed: 23 km/h
Water tank capacity: 630 l
Unladen weight: 6,700 kg
Brand: FPT
Fuelling: Diesel
Displacement: 4,485 cm³
Nominal power: 74 kW (99 hp)
RPM at nominal power: 2,200 rpm
Emission standard: Stage IIIA/Tier 3
Transmission type: Hydrostatic with variable displacement pump
Standard tyres: 405/70×20″
