Mining

Fixed Boom Telehandlers

Zeus 38.10

Max Capacity:

3,800 kg

Max Lift Height:

9.75 m

Total Weight:

8,000 kg

Max Power:

93 kW (125 hp)

Engine Brand:

FPT

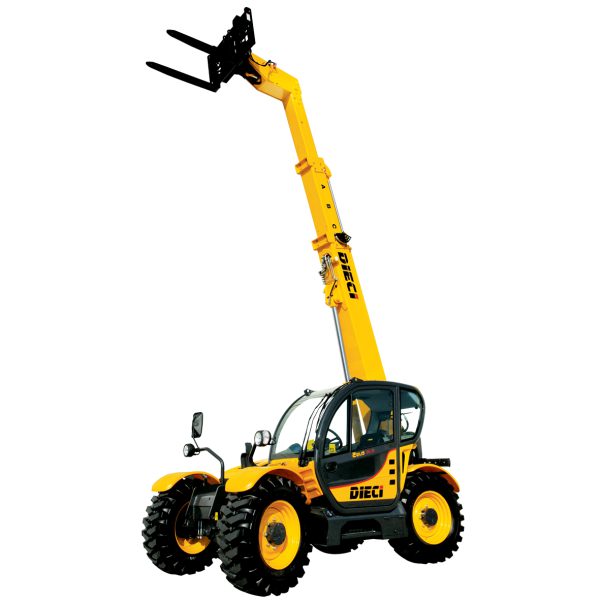

      Dieci Zeus Telehandler
      ABOUT

      Product Info

      The Zeus 38.10 is specifically designed for superior performance in mining operations, offering operators the perfect blend of power and manoeuvrability needed to handle heavy loads in confined spaces typical of mining sites.

      Safety is prioritized with the integration of a transverse leveling system that helps maintain stability during load handling. Additionally, the machine is built with robust components and materials, ensuring long-lasting durability and reducing the need for frequent maintenance and part replacements, even under tough mining conditions.

      TECHNICAL

      Specifications

      Length: 4,950 mm

      Width: 2,290 mm

      Height: 2,310 mm

      Maximum capacity: 3,800 kg

      Maximum lifting height: 9.75 m

      Pull-out force: 5,700 daN

      Towing force: 7,300 daN

      Maximum speed: 30 km/h

      Unladen weight: 8,000 kg

      Brand: FPT

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 4,485 cm³

      Nominal power: 93 kW (125 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 130 l/min

      Maximum operating pressure: 24 MPa

      Transmission type: Hydrostatic with variable displacement pump

      Standard tyres: 400 / 70 x 20″
